- FEATURES
-
- Typically 1uA no-load supply current
- Guaranteed 250mA output current (3.0V output @ VIN >= VOUT +1V)
- Input voltage range: 2.5V~6.5V
- 1.5V ~ 5.0V output voltage
- Dropout Voltage is 150mV @ 100mA Load
- Built-in over-current protection
- Stable with low cost ceramic capacitors
- APPLICATIONS
-
- Power supply for battery-powered devices
- Cellular phones and other portable devices
- DESCRIPTION
The AIC1705B is a low dropout linear regulator with ultra low current consumption and high output voltage accuracy. The supply current at no-load is typically 1uA. The built-in low-on-resistance realizes low dropout voltage and high output current. Minimum output current limit is set at 250mA. The AIC1705B is designed to employ I/O capacitors are as small as 0.1uF, and comes in space saving SOT23-3, SOT23-5, DFN-4(1x1) packages.

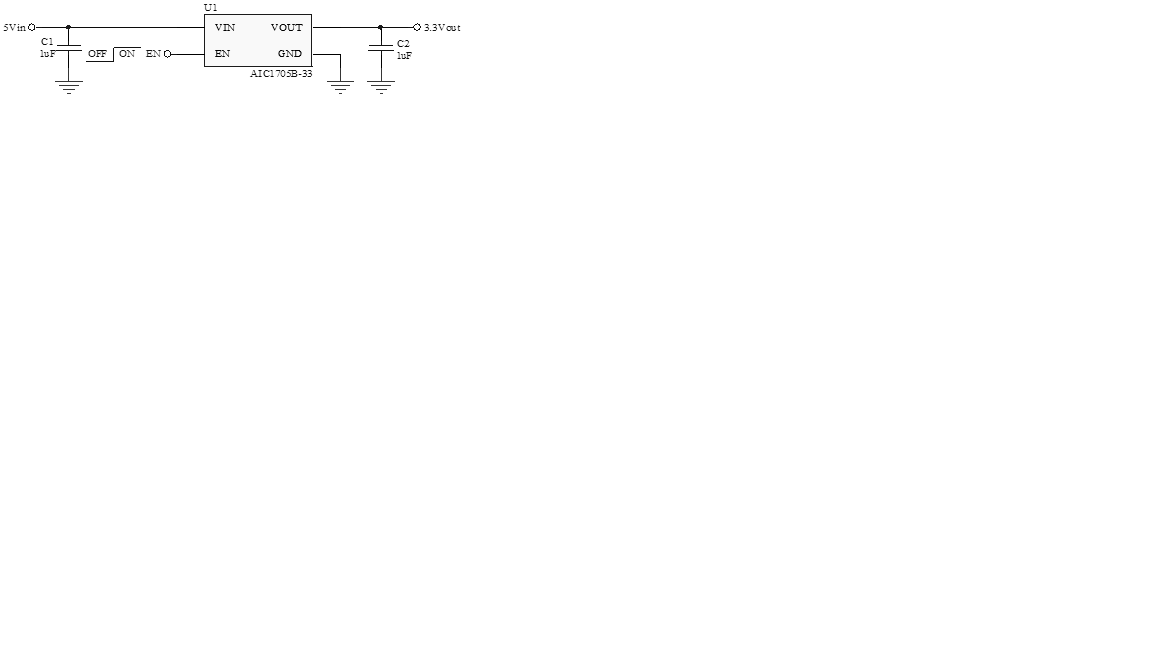

- TYPICAL APPLICATION
