AIC6191
Single Channel Bare-Bone USB Switch
- FEATURES
-
- 170mOhm High-Side MOSFET Switch.
- 0.5A Continuous Load Current.
- 40uA Quiescent Supply Current.
- 3.2V to 5.5V Input Voltage Range.
- Under-Voltage Lockout.
- Current-Limit / Short Circuit Protection.
- Thermal Shutdown Protection under Over Current Condition.
- Under Voltage Lockout Ensures that Switch is off at Start Up.
- No Reverse Current when Power off.
- Available in SOT23-3 Packages.
- APPLICATIONS
-
- USB Power Management
- High-Side Power Protection Switch
- Hot Plug-In Power Supplies
- Battery-Charger Circuits
- Portable Application.
- Digital televisions
- Computer
- Multimedia
- Mobile Phones
- DESCRIPTION
- The AIC6191 is an integrated 170mOhm high-side power switch, the preferred circuit protection method for computer, consumer, multimedia and portable applications. AIC6191 can protect sensitive electronics from damage caused by both overcurrent and overtemperature events.
The protection includes current limiting with foldback, short circuit and thermal shutdown under overcurrent occurs.
Guaranteed minimum output rise time limits inrush current during hot plug-in as well as minimizing EMI and prevents the voltage at upstream port from dropping excessively.

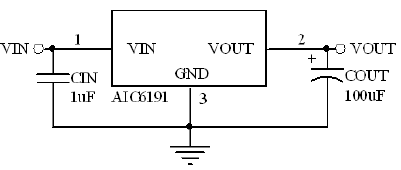

- TYPICAL APPLICATION
