AIC6607

Off-Line Linear LED Driver

FEATURES
  • Constant Current Regulator
  • Wide Range, Programmable LED Voltage
  • Current Operation: 15mA ~ 50mA
  • Can be Paralleled for Higher Current
  • 5V to 500V Supply Voltage Range
  • High Efficiency
  • Stable LED Brightness
  • Over Temperature Protection
  • SOP-8 Exposed Pad Package & TO252-5 Package
  • Patent Pending Drive Architecture
APPLICATIONS
  • LED Lamps (e.g. E27, GU10)
  • General Illumination
  • LED Strings (e.g. T-8 Tube)
  • Constant Current Sink
DESCRIPTION
The AIC6607 is an off-line linear LED driver. The application of high bright LED is widely used for general illumination.
The AIC6607 can drive LEDs with a constant current of 15mA ~ 50mA. Multiple AIC6607 can also be used in parallel to provide higher currents.
The AIC6607 is available in a SOP-8 Exposed Pad Package & TO252-5 Package.

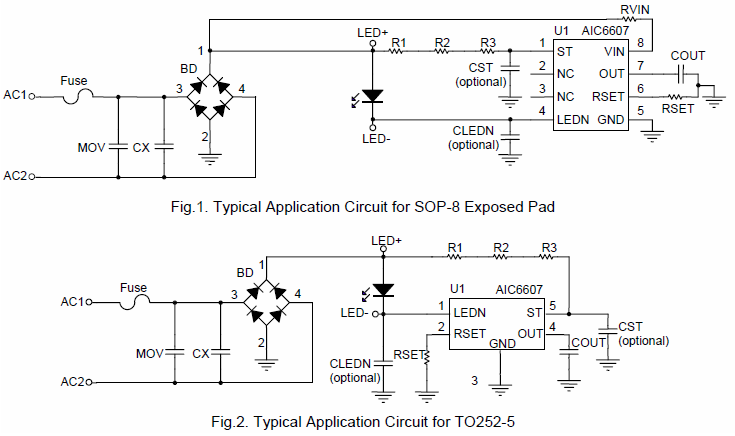

TYPICAL APPLICATION
