AIC2893
3A 30V 650kHz Synchronous Step-Down Converter
- FEATURES
-
- 3A Continuous Output Current
- Wide 4.5V to 30V Operating Input Range
- Output Adjustable from 0.8V to 6V
- Up to 93% efficiency
- Low Rds(on) Internal Switch
- Adaptive On Time Control
- Fast Transient Response
- Pseudo 650kHz Switching Frequency
- Programmable Soft Start
- Thermal Shutdown
- Cycle by Cycle Over Current Protection
- Short Circuit Protection
- Thermal Shutdown
- Available in SOP-8 exposed pad package
- APPLICATIONS
-
- Digital TV Power Supply
- High Definition Blu-ray Players
- Networking Home Terminal
- Set Top Box
- Multi-Function Printer
- DESCRIPTION
- he AIC2893 is an adaptive on time control syn-chronous step down converter. The AIC2893 en-ables system designers to complete various power bus regulators with a cost effective, low component count, low standby current.
The AIC2893 main control loop uses adaptive on time control that provides a fast transient re-sponse without external compensation compo-nent. The low impedance internal MOSFETs support high efficiency operation with wide input voltage range form 4.5V to 30V.
The AIC2893 has a proprietary circuit that the device adapts to all ceramic capacitors. The out-put voltage can be adjustable between 0.8V to 6V. The device also features a programmable soft start time.
This device is available in SOP-8 with exposed pad package and provides a very compact sys-tem solution with minimal external components and PCB area.

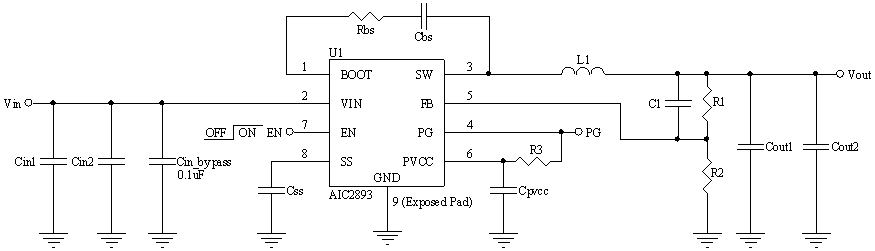

- TYPICAL APPLICATION
