AIC2832

2A 16V 490kHz PWM/PSM Synchronous Step-Down Converter

Please contact with sales for details.
FEATURES
  • 2A Continuous Output Current
  • Wide 4.5V to 16V Operating Input Range
  • Output Adjustable from 0.8V to 10V
  • Up to 95% efficiency
  • Low Rds(on) Internal Switch
  • <1uA Supply Current in Shutdown Mode
  • 490kHz Frequency
  • Under Voltage Lockout
  • Cycle by Cycle Over Current Protection
  • Short Circuit Protection
  • Thermal Shutdown
  • Available in SOT23-6 package
APPLICATIONS
  • Networking
  • Set Top Box
  • Industrial and Commerical Low Power Systems
  • LCD Monitors and TVs
  • Green Electronics/Appliances
  • Ponit of Load Regulation of High-Performance DSPs
DESCRIPTION
The AIC2832 is a high efficiency, monolithic syn-chronous step-down DC/DC converter that can deliver up to 2A output current from 4.5V to 16V input voltage.The AIC2832 current mode archi-tecture provides fast transient response and eas-es loop stabilization. Low output voltage ripple and small external inductor and capacitors sizes are achieved with 490kHz switching frequency.
The AIC2832 has cycle-by-cycle current limit provides protection against shorted output, and soft start eliminates inrush current during start-up.
The AIC2832 also provides over voltage protec-tion and thermal shutdown protection function. The low current at shutdown mode allows output disconnection, enabling easy power manage-ment in battery-power system.
This device is available in SOT23-6 package provides a very compact system solution with minimal external components and PCB area.

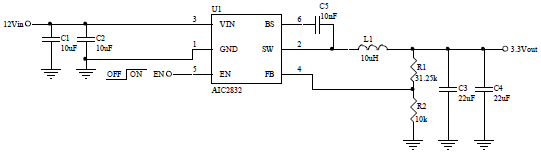

TYPICAL APPLICATION
