AIC2865

5A 16V 700kHz Synchronous Step-Down Converter

FEATURES
  • 5A Continuous Output Current
  • Wide 4.5V to 16V Operating Input Range
  • Output Adjustable from 0.8V to 6V
  • Up to 91% efficiency
  • Low Rds(on) Internal Switch
  • Adaptive On Time Control
  • Fast Transient Response
  • 700kHz Switching Frequency
  • Programmable Soft Start
  • Thermal Shutdown
  • Cycle by Cycle Over Current Protection
  • Short Circuit Protection
  • Thermal Shutdown
  • Available in SOP-8E package
APPLICATIONS
  • Digital TV Power Supply
  • High Definition Blu-ray Players
  • Networking Home Terminal
  • Set Top Box
DESCRIPTION
The AIC2865 is an adaptive on time control syn-chronous step down converter. The AIC2865 enables system designers to complete various power bus regulators with a cost effective, low component count, low standby current.
The AIC2865 main control loop uses adaptive on time control that provides a fast transient re-sponse without external compensation component. The low impedance internal MOSFETs support high efficiency operation with wide input voltage range form 4.5V to 16V.
The AIC2865 has a proprietary circuit that the device adapts to all ceramic capacitors. The out-put voltage can be adjustable between 0.8V to 6V. The device also features a programmable soft start time.
This device is available in SOP-8E package and provides a very compact system solution with minimal external components and PCB area.

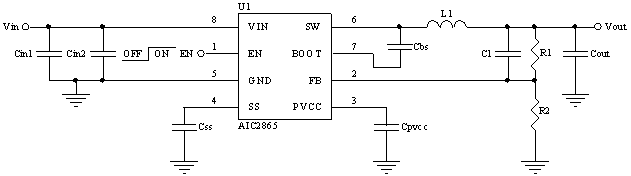

TYPICAL APPLICATION
