AIC3632

2.1A Synchronous Step-Up Converter

FEATURES
  • Adjustable Output Voltage up to 24V
  • 2.7V to 5.5V Input Range
  • Maximum 0.1uA Shutdown Current
  • Tiny Inductor and Capacitors are allowed
  • Space-Saving SOT23-6 Package
APPLICATIONS
  • LCD Bias
  • LCM
  • OLED Driver
DESCRIPTION
AIC3632 is a pulse-frequency modulation (PFM), step-up DC/DC Converter. The built-in high voltage N-channel MOSFET allows AIC3632 for step-up applications with up to 24V output voltage, as well as for Single Ended Primary Inductance Converter (SEPIC) and other low-side switching DC/DC converter.
The AIC3632 is available in a space-saving SOT23-6 package.

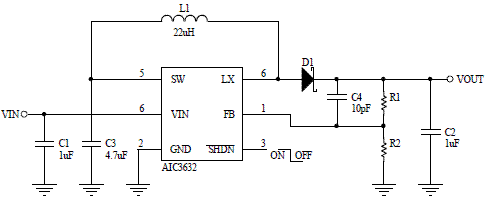

TYPICAL APPLICATION
