AIC2565

23V 3A Step-Down DC/DC Converter

FEATURES
  • 3A Continuous Output Current
  • Programmable Soft Start
  • 100mohm Internal Power MOSFET Switch
  • Stable with Low ESR Output Ceramic Capacitors
  • Up to 95% Efficiency
  • 22uA Supply Current in Shutdown Mode
  • Fixed 385KHz Frequency
  • Thermal Shutdown
  • Cycle by Cycle Over Current Protection
  • Wide 4.75 to 23V Operating Input Range
  • Output Adjustable from 1.22V to 16V
  • Under Voltage Lockout
APPLICATIONS
  • Networking Products
  • Distributed Power Systems
  • Battery Charger
  • Pre-Regulator for Linear Regulators
DESCRIPTION
The AIC2565 is a high efficiency, step-down DC/DC converter that builds in a high side power MOSFET. It offers continuous 3A output current over a very wide input voltage range with excellent load and line regulation.
Well-performed current mode operation makes fast transient response and feedback loop stabilization easier.
The AIC2565 draws only 22uA supply current in shutdown mode. Current limit and thermal shutdown function are also provided to prevent damage. The AIC2565 is available in SOP-8E package.

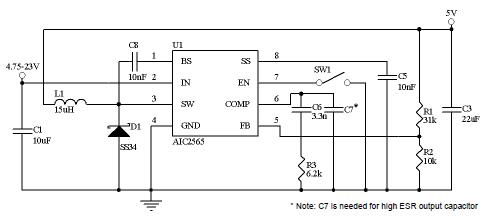

TYPICAL APPLICATION
