AIC1746
150mA Linear Regulator With Bypass Pin
- FEATURES
-
- Guarantee 150mA Output Current
- Fast Response in Line/Load Transient
- Wide Operating Voltage Ranges: 2.0V to 6.0V
- 0.01uA Shutdown Standby Current
- Low Quiescent Current：80uA
- Output Voltage available within 1.1~4.2V
- Low Dropout：140mV at 150mA
- PSRR：60dB at 1kHz
- Fixed: 1.1, 1.2, 1.3, 1.5, 1.8, 2.5, 2.7, 2.8, 3.0, 3.3, 3.5, 3.7, 3.8 Output Voltage
- Current Limit and Thermal Protection
- Available in ±2% Output Tolerance
- Available in SOT23-3, SOT23-5, SOT89-3, SOT89-5, TSOT23-3, TSOT23-5, SC70-3, SC70-5 and DFN-6 (2x2) Package
- APPLICATIONS
-
- Cellular Phones
- PCMCIA Cards
- Laptop, Palmtops, Notebook Computers
- Personal Communication Equipment
- PDAs
- Digital Still Cameras
- Portable Consumer Equipments
- DESCRIPTION
- AIC1746 is optimized for low ESR ceramic capacitor operation with 150mA continuous current. The AIC1746 is designed for portable RF and wireless applications with demanding performance and space requirements.
The AIC1746 offers high precision output voltage of ±2% tolerance.
Output Voltage is available within 1.1~4.2V. There are version of 1.1, 1.2, 1.3, 1.5, 1.8, 2.5, 2.7, 2.8, 3.0, 3.3, 3.5, 3.7 and 3.8 for a fixed output voltage.
A noise bypass pin is available for further reduction of output noise. At 150mA load current, a 140mV dropout can be performed. The quality of low quiescent current and low dropout voltage makes the device ideal for battery power applications. The high ripple rejection and low noise of the AIC1746 provide enhanced performances for critical applications such as cellular phones, and PDAs.
In addition, AIC1746’s current limit and thermal protection provide protection against any overload condition that would cause excessive junction temperatures.

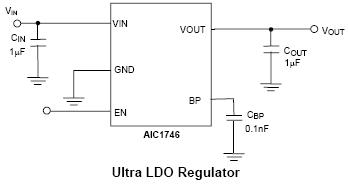

- TYPICAL APPLICATION
