AIC1742

Low Noise, Low Quiescent Current, 150mA Linear Regulator with Noise Bypass

FEATURES
  • Very Low Noise, 25uVRMS @ f=10~100kHz
  • Very Low Quiescent Current, 35uA
  • Very Low Dropout Voltage, 90mV @ 50mA
  • Active Low Shutdown Control
  • Short Circuit and Thermal Protection
  • 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 2.85V, 2.9V, 3.0V, 3.3V Output Voltage
  • Available in ±2% Output Tolerance
  • Low Profile Package: SOT23-5
APPLICATIONS
  • Cellular Telephones
  • Pagers
  • Personal Communication Equipment
  • Cordless Telephones
  • Portable Instrumentation
  • Portable Consumer Equipment
  • Radio Control Systems
  • Low Voltage Systems
  • Battery Powered Systems
DESCRIPTION
AIC1742 is a low noise, low dropout linear regulator, and is housed in a small SOT23-5 package. The device is in the “ON” state when the   pin is set to logic high level. A low dropout voltage of 90mV at 50mA load current is performed. It offers high precision output voltage of ±2%. The quality of low quiescent current and low dropout voltage makes this device ideal for battery power applications.
The internal reverse bias protection eliminates the requirement for a reverse voltage protection diode. The high ripple rejection and low noise of AIC1742 provide enhanced performance for critical applications. The noise bypass pin can be connected an external capacitor to reduce the output noise level.

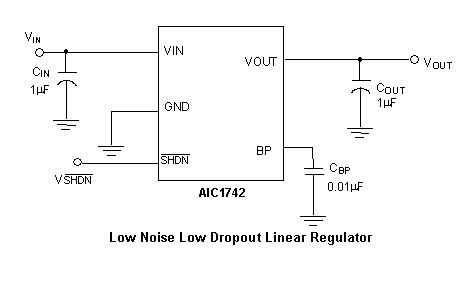

TYPICAL APPLICATION
