AIC1385
2A DDR Termination Regulator
- FEATURES
-
- VCNTL Input Voltage Range: 2.375V to 5.5V
- VIN Input Voltage Range: 1.1V to 5.5V
- Continuous 2A Source and Sink Current
- Support DDR / DDRII / DDRIII Requirements
- Low Output Voltage Offset, ±20mV
- High Accuracy Output Voltage at Full-Load
- Adjustable VOUT by External Resistor
- Stable with 22μF Ceramic Output Capacitor
- Low External Component Count
- Built in Soft Start, UVLO and OCP Protection
- Thermal Shutdown Protection
- SOP-8 and SOP-8E Packages
- RoHS Compliant and Green Package
- APPLICATIONS
-
- Desktop PCs, Notebooks and Workstations
- Graphic Cards
- Set Top Boxes, Digital TVs, Printers
- DDR/II/III Termination Voltage Supply
- DESCRIPTION
- AIC1385 linear regulator is designed to achieve 2A source and sink current while
regulating an output voltage to within 20mV.
AIC1385 converts voltage supplies range from 1.1V to 5.5V into an output voltage that adjusts by two external voltage divider resistors. It provides an excellent voltage
source for active termination schemes of highspeed transmission lines as those seen in double data rate (DDR) memory system, and it meets the JEDEC SSTL-2 and SSTL-18 or other specific interfaces such as HSTL, SCSI-1 and SCSI-3 specifications for termination of DDR-SRAM.
Built-in current limiting in source and sink mode, on-chip thermal shutdown protection to against fault conditions.
The AIC1385 is available in the SOP-8 and SOP-8E package

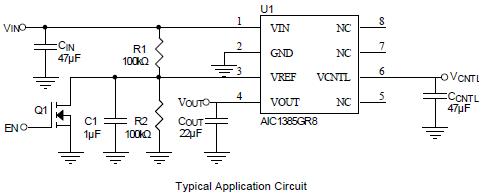

- TYPICAL APPLICATION
