AIC1117

800mA Low Dropout Positive Regulator

FEATURES
  • Dropout Voltage 1.2V at 800mA Output Current
  • Fast Transient Response
  • Line Regulation typically at 0.015%
  • Load Regulation typically at 0.1%
  • Current Limiting and Thermal Protection
  • Adjustable Output Voltage or Fixed 1.8V, 2.5V, 3.3V
  • Standard 3-Pin Power Packages
APPLICATIONS
  • SCSI-2 Active Terminator
  • Post Regulator for Switching Supply
  • Battery Chargers
  • Constant-Current Regulators
  • PC Add-On Card
DESCRIPTION
The AIC1117 is a low dropout three terminal regulator with 800mA output current capability. The output voltage is adjustable with the use of a resistor divider. For fixed output voltage versions, the output voltage is internally set at 1.8V, 2.5V or 3.3V. Dropout voltage is guaranteed to be at a maximum of 1.3 V with the maximum output current.
Its low dropout voltage and fast transient response make it ideal for low voltage microprocessor applications. Current limiting and thermal protection provide protection against any overload condition that would create excessive junction temperatures.

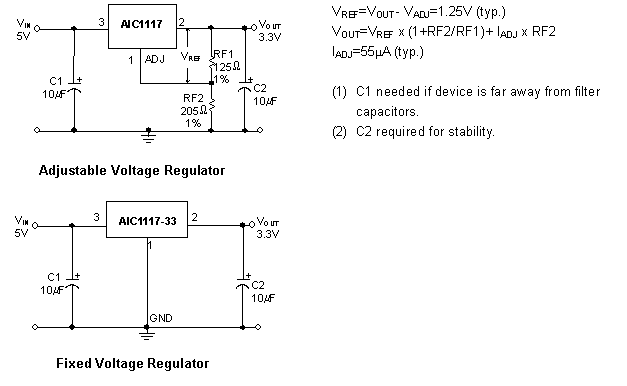

TYPICAL APPLICATION
