AIC6168
Regulatory USB High-Side Power Switch
- FEATURES
-
- 150mOhm (6V input) High-Side MOSFET Switch
- 0.5A/1A Continuous Load Current of USB switch
- 170uA Typical On-State Supply Current of USB switch
- 0.75uA Typical Off-State Supply Current of USB switch
- Fault Flag with 8ms filter eliminates false assertions
- Under Voltage Lockout Ensures that Switch is off at Start Up
- USB Switch Output can be Forced Higher than USB Switch Input (Off-State)
- Open-Drain Fault Flag
- Slow Turn ON and Fast Turn OFF
- Control Active-High or Active-Low
- Constant Current Limit / Short Circuit Protection
- Fast Short Circuit Protection Response
- Thermal Shutdown Protection (latching)
- Available in SOP-8E Package
- APPLICATIONS
-
- USB Power Management.
- Hot Plug-In Power Supplies.
- Battery-Charger Circuit.
- DESCRIPTION
- The AIC6168 is a power switch IC integrated a low dropout linear regulator for bus-powered Universal Serial Bus (USB) applications.
The high-side switch of USB power switch is MOSFET with 150mOhm RDS(ON), which meets USB voltage drop requirements for maximum transmission wire length.
Multi-purpose open-drain fault flag output indicates over-current limiting, thermal shutdown, or under voltage lockout. The output current of USB power switch is typical limited to 0.72A / 1.45A (control by select pin).
Guaranteed minimum output rise time limits inrush current during hot plug-in as well as minimizing EMI and prevents the voltage at upstream port from dropping excessively.

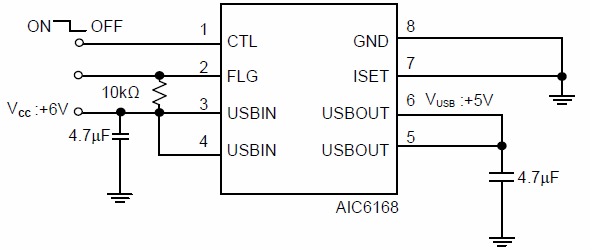

- TYPICAL APPLICATION
