AIC6608
Dimmable Off-Line Linear LED Driver
- FEATURES
-
- Constant Current Regulator
- Compatible with TRIAC Dimmer
- Wide Range, Programmable LED Voltage
- Output LED Peak Current available from 50mA to 100mA
- Can be Paralleled for Higher Current
- 5V to 500V Supply Voltage Range
- High Efficiency
- Stable LED Brightness
- Over Temperature Protection
- SOP-8 Exposed pad Package
- Patent Pending Drive Architecture
- APPLICATIONS
-
- LED Lamps (e.g. E27, GU10)
- General Illumination
- LED Strings (e.g. T-8 Tube)
- Constant Current Sink
- DESCRIPTION
- The AIC6608 is a dimmable off-line linear LED driver that is compatible with TRIAC dimmer. The application of high bright LED is widely used for general illumination.
The AIC6608 can drive LEDs with a peak constant current of 50mA ~ 100mA. Multiple AIC6608 can also be used in parallel to provide higher currents.
The AIC6608 is available in a SOP-8 Exposed Pad package.

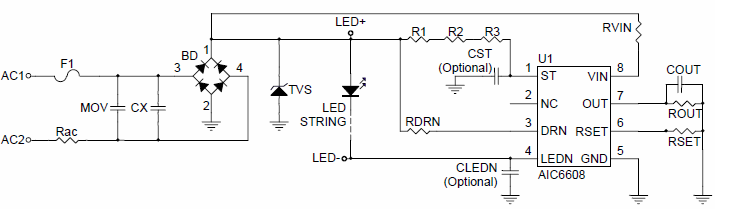

- TYPICAL APPLICATION
