AIC2271
1A, 3MHz AOT Synchronous Step-Down DC/DC Converter
- FEATURES
-
- 2.5V to 6V Input Voltage Range
- 1.0A Guaranteed Output Current
- Up to 93% Efficiency
- Low RDS(ON) Internal Switch : 110mOhm
- Stable with Low ESR Output Ceramic Capacitors
- No Schottky Diode Required
- 100% Duty Cycle in Low Dropout Operation
- 3MHz Operating Frequency
- Accurate Reference 0.6V Provides Low Output Voltages
- 17uA Quiescent Current
- Under Voltage Lockout
- Cycle by Cycle Over Current Protection
- Short Circuit Protection
- Over Temperature Protection
- Available in a TSOT23-8 Package
- APPLICATIONS
-
- LCD TV
- Multi-function Peripheral
- CPU I/O Supplies
- Cordless Phones
- PDAs and Handy-Terminals
- Battery-Operated Devices (1 Li-Ion or 3 NiMH/ NiCd)
- DESCRIPTION
- The AIC2271 is an adaptive on time control synchronous step down converter. The device features an internal synchronous rectifier for high efficiency; it requires no external Schottky diode.
The AIC2271 main control loop uses adaptive on time control that provides a fast transient response without external compensation component.
The low impedance internal MOSFET supports high efficiency operation. The AIC2271 has a proprietary circuit that the device to adapt to all ceramic capacitors.
Other features of the AIC2271 include high efficiency, low dropout voltage, over current protection, short circuit protection, and over temperature protection. It is available in a small 8 pins TSOT23-8 package.

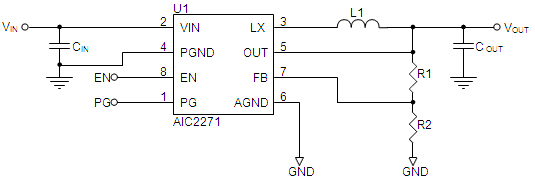

- TYPICAL APPLICATION
