AIC1634
1.4MHz Current-Mode Step-Up DC/DC Converter
- FEATURES
-
- Fixed Frequency 1.4MHz Current-Mode PWM Operation.
- Adjustable Output Voltage up to 30V.
- Guaranteed 12V/ 150mA Output with 5V Input.
- 2.6V to 10V Input Range.
- Maximum 0.1μA Shutdown Current.
- Programmable Soft-Start.
- Tiny Inductor and Capacitors are allowed.
- Space-Saving SOT-23-6 Package.
- APPLICATIONS
-
- DESCRIPTION
- AIC1634 is a current-mode pulse-width modulation (PWM), step-up DC/DC Converter. The built-in high voltage N-channel MOSFET allows AIC1634 for step-up applications with up to 30V output voltage, as well as for Single Ended Primary Inductance Converter (SEPIC) and other low-side switching DC/DC converter.
The high switching frequency (1.4MHz) allows the use of small external components. The Soft-Start function is programmable with an external capacitor, which sets the input current ramp rate.
The AIC1634 is available in a space-saving SOT-23-6 package.

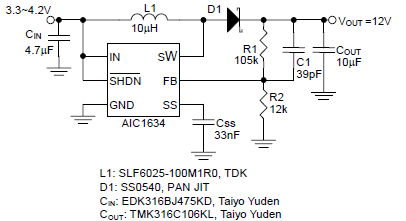

- TYPICAL APPLICATION
