AIC1848
Regulated 5V Charge Pump In SOT23-6
- FEATURES
-
- Regulated ±4% Output Voltage
- Output Current: 100mA at VIN =3.1V
- Input Range: 2.7V to 4.5V
- No Inductors Required
- Very Low Shutdown Current: <1uA
- 1.8MHz Switching Frequency
- Short-Circuit and Over Temperature Protection
- Low Profile Package: SOT23-6
- APPLICATIONS
-
- White LEDs Backlighting
- SIM Interface Supplies for Cellular Telephones
- Li-Ion Battery Backup Supplies
- Local 3V to 5V Conversion
- Smart Card Readers
- PCMCIA Local 5V Supplies
- DESCRIPTION
- The AIC1848 charge pump is a micropower charge pump DC/DC converter that produces a regulated output voltage from 2.7V to 4.5V input voltage. Low external-part count (one flying capacitor and two small bypass capacitors) makes the AIC1848 ideal for small, battery-powered applications.
The AIC1848 operates as a constant frequency mode switched capacitor voltage doubler to produce a regulated output and features with thermal shutdown capability and short circuit protection.
The AIC1848 is available in a space-saving SOT23-6 package.

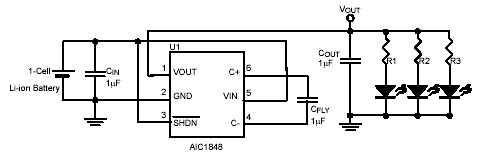

- TYPICAL APPLICATION
