AIC6170
Single Channel USB Switch with Adjustable Current Limit
- FEATURES
-
- 85mOhm High-Side MOSFET Switch
- 100uA Quiescent Supply Current
- 1uA Maximum Shutdown Supply Current
- 3.0V to 5.5V Input Voltage Range
- Open-Drain Over-Current Flag Output
- Under-Voltage Lockout
- Thermal / Short Circuit Protection
- Adjustable Current Limit : 0.4A ~ 2.0A
- Under Voltage Lockout Ensuring Switch is off at Start Up
- Soft Start prevents large Inrush Current
- Discharge function when shutdown active
- No Reverse Current at Power off
- Enable Active-High or Active-Low Version
- Available in SOT23-6 Packages
- APPLICATIONS
-
- USB Power Management
- High-Side Power Protection Switch
- Hot Plug-In Power Supplies
- Battery-Charger Circuits
- Portable Application.
- Digital televisions
- DESCRIPTION
- The AIC6170 is an integrated mOhm high-side power switch for self-powered and bus-powered Universal Serial Bus (USB) applications. This switch operates with input ranging from 3.0V to 5.5V, making it ideal for 5V systems.
The protection schemes include programmable current limiting with foldback, thermal shutdown and short circuit protection. The AIC6170 is ideal for any system where current limiting and power control are desired. The low quiescent current and small package of the AIC6170 makes it particularly suitable for battery-powered portable devices.
The Guaranteed minimum output rise-time which limits inrush current as well as minimizes EMI during hot plug-in prevents the voltage at upstream port from dropping excessively.

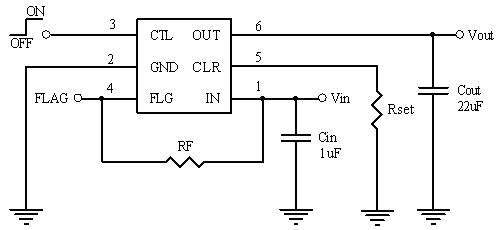

- TYPICAL APPLICATION
