AIC6156

Single Channel USB Switch with Adjustable Current Limit

FEATURES
  • 60mohm High-Side MOSFET Switch.
  • 85uA Quiescent Supply Current.
  • 1uA Maximum Shutdown Supply Current.
  • 3.5V to 5.5V Input Voltage Range.
  • Open-Drain Over-Current Flag Output.
  • Under-Voltage Lockout.
  • Thermal / Short Circuit Protection.
  • Fast Short Circuit Protection Response.
  • Adjustable Current Limit : 0.5A ~ 3.5A
  • Under Voltage Lockout Ensures that Switch is off at Start Up.
  • Soft Start prevents large Inrush Current.
  • Discharge function when shutdown active.
  • No Reverse Current when Power off.
  • Enable Active-High or Active-Low Version.
  • Available in SOP-8 Exposed Pad Packages.
  • 2kV ESD Rating (Human Body Mode)
APPLICATIONS
  • USB Power Management
  • High-Side Power Protection Switch
  • Hot Plug-In Power Supplies
  • Battery-Charger Circuits
  • Portable Application.
  • Digital televisions
DESCRIPTION
The AIC6156 is integrated 60mohm high-side power switch for self-powered and bus-powered Universal Serial Bus (USB) applications. This switch operates with input ranging from 3.5V to 5.5V, making it ideal for 5V system.
The protection includes programmable current limiting with foldback, short circuit protection and thermal shutdown. The AIC6156 is ideal for any system where current limiting and power control are desired. The AIC6156 has low quiescent current and small package, which is particularly suitable in battery powered portable application.
Guaranteed minimum output rise time limits inrush current during hot plug-in as well as minimizing EMI and prevents the voltage at upstream port from dropping excessively.

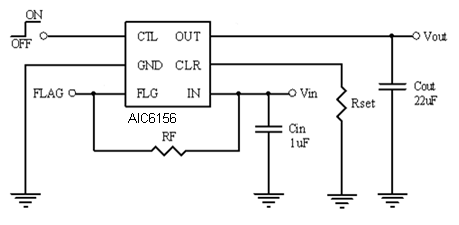

TYPICAL APPLICATION
